MECHSOURCE

ABOUT

Mechsource India are the extended capability as start-up machining division with the primary concern at Coimbatore in the name of propel engineering , In which we are capable to produce own patterns for foundries with complete sourcing responsibility of casting , machining and special processes for our customers. With that maturity we are in machining set-up to expand our capability with small start up called MECHSOURCE INDIA. We take pride in being a profound Manufacturer, Supplier, and outsourcing of Engineering Parts, Machined Casting Parts, etc., and have gained huge exposure in Oil and Gas industries..

Infrastructure & Capability

Conventional Machinery

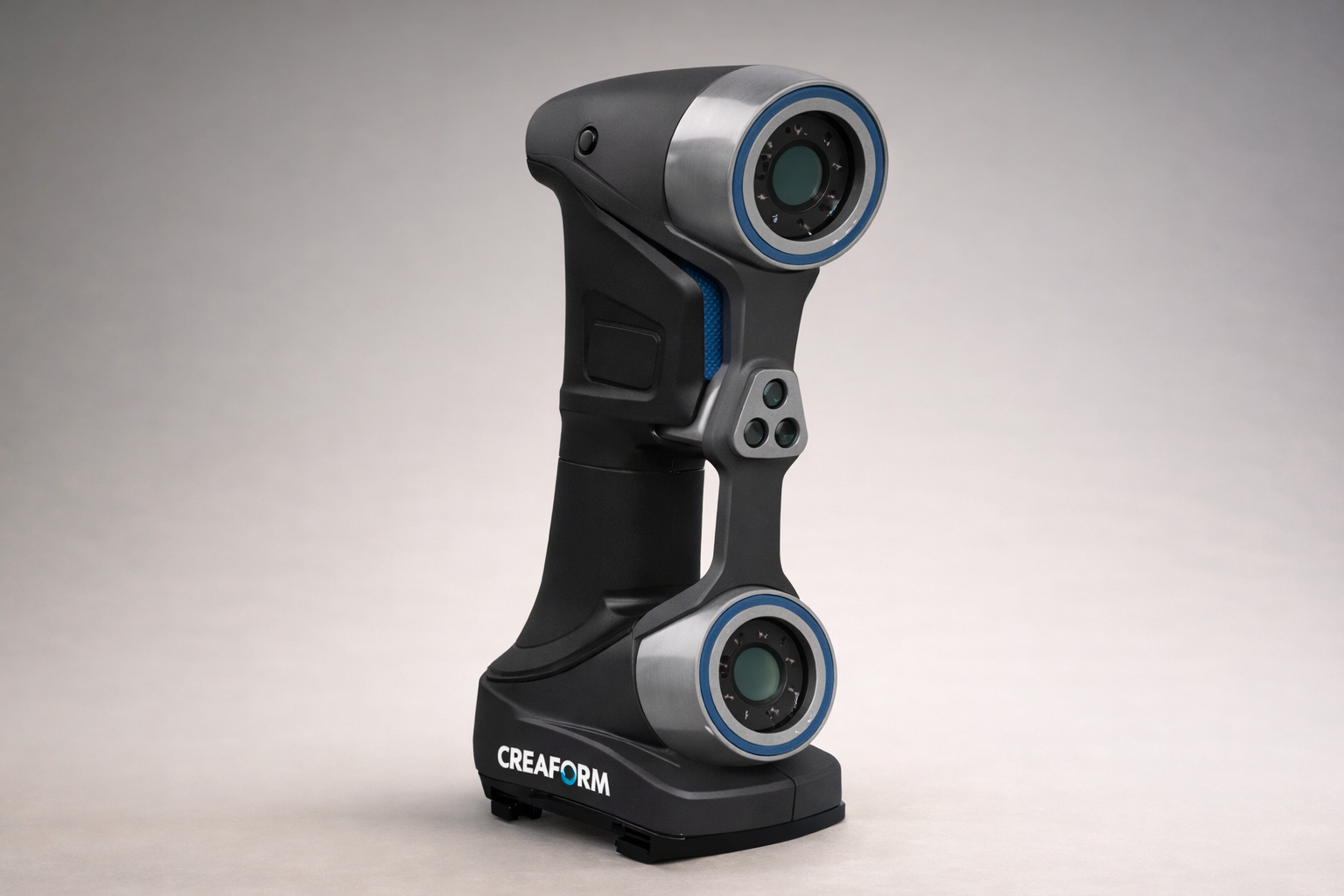

3D Scanner

Handheld 3D Scanner

High Accuracy | Eye-Safe Laser

Accuracy Up to 0.030 mm
Volumetric Accuracy (Based on Part Size) 0.020 mm + 0.06 mm/m
Volumetric Accuracy (Max Shot) 0.020 mm + 0.015 mm/m
Measurement Resolution 0.050 mm
Mesh Resolution 0.200 mm
Measurement Rate 480,000 measurements/sec
Light Source 7 Blue Laser Crosses (+1 extra line)
Laser Class 2M (Eye Safe)
Scanning Area 275 × 250 mm
Stand-off Distance 300 mm
Depth of Field 250 mm
Recommended Part Size Range 0.1 – 4 m

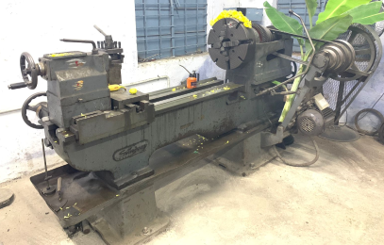

Turning Centre

Turning Centre (Conventional Lathe)

Brand: Sandeep – Rajkot

  • Chuck Diameter: 12 inch
  • Bed Length: 7 Feet
  • Drive Type: V Belt
  • Admit Between Centres: 38”
  • Centre Height: 10”
  • Spindle Bore: 80 mm
DRO Milling Machine

DRO Milling Machine

Brand: Diamond – India

  • Model: 4KS
  • Table Size: 1270 × 470 mm
  • Spindle: ISO 30 / R8 / ISO 40

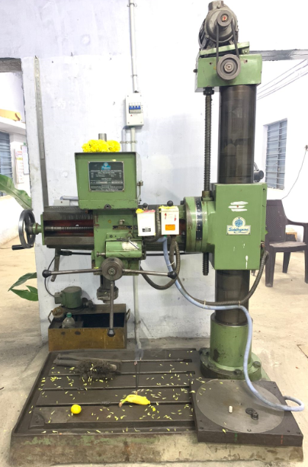

Radial Drilling Machine

Radial Drilling Machine (Motorized)

Brand: SEW – Siddhapura

  • Drilling Capacity: 38 mm
  • Spindle Travel: 250 mm
  • Tapping Capacity: 30 mm
  • Feed Type: Auto Feed
  • Speed: 8 Speed
  • Spindle to Column Distance: 800 mm
